Sheet Dimension

Solid Surface sheet material and mouldings – to suit every application

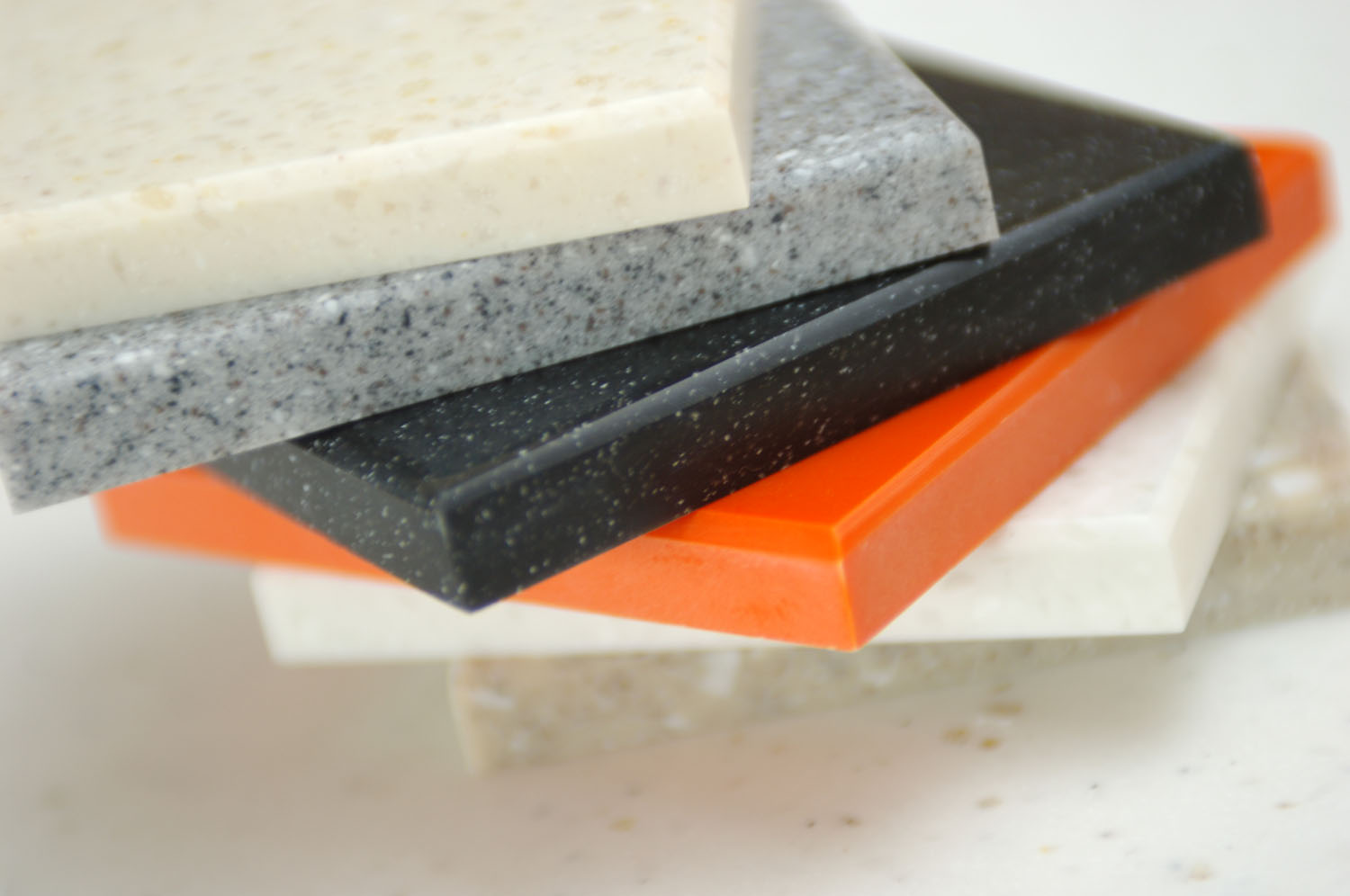

HI-MACS® is manufactured in the form of sheets and mouldings (sinks and bowls).


The Solid Surface sheets are factory-cut to specific dimensions and can then be simply and easily machined by trained fabricators to the required size. The material is available in three different standard thicknesses: 6 mm for vertical applications, 9 mm for horizontal, non-load-bearing applications without a heat source and 12 mm for horizontal, load-bearing applications or applications with a heat source.


The mouldings are also supplied ready-to-install in a number of different designs and sizes and in different colors.


FR type HI-MACS® sheets are available in S028 Alpine White. They carry a higher class of fire resistance and comply with IMO Modules B+D and M1. FR sheets are especially suitable for applications in public buildings and as wall cladding.



Standard Format


Sheet thickness
(mm)

Sheet width
(mm)
Sheet length
(mm)
3 930 3000
6 760 2490
6 910(*) 2490
9 760 3680
9 910(*) 3680
12 760 3680
12
910(*)
3680
(*) Available in S28 Alpine White only


Special Format*


Sheet thickness
(mm)

Sheet width
(mm)
Sheet length
(mm)
3 930 3000
6 760 2490
6 910(*) 2490

(*) only by special order
